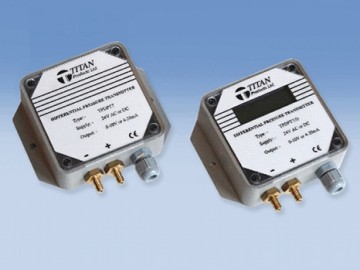

For use in low-pressure applications in ventilation and air conditioning systems, filter monitoring systems, building pressurisation and air leak detection systems, the TPDPT7/2500 and TPDPT7/10000 offer eight selectable ranges from 0-2500PA and 0-10000PA. The TPDPT7/100 has four selectable ranges of 0-25PA, 0-50PA, 0-75PA and 0-100PA. All ranges in the TPDPT7/100 and TPDPT/2500 are +/- selectable. The solid-state temperature compensated element employed by the TPDPT7 delivers exceptional accuracy, linearity and low hysteresis levels, the company says. These superior measurement and sensitivity levels are achieved through digital measurement and microprocessor-based technology. Self-dampening and zero calibration are also included. An optional plug-in LCD display provides the ability to read the selected sensor range and the instantaneous measured value. The TPDPT7 operates from a 24VAC or DC supply and provides outputs of 0–5V or 0–10V with 4–20mA. The sensor comes fully calibrated and includes a full mounting kit.
Contact T +44 161 406 6480 {encode="admin@titanproducts.com" title="admin@titanproducts.com"} www.titanproducts.com
